Rv580 Thermo King 12v/24v Cooling System Refrigeration Units For
Truck
RV, as the acronym of Rapid cooling/Reliable/Revolution
Vehicle-powered, is specially designed for transport refrigeration
in the range of light
and medium distribution vehicles.
This all new RV platform is equipped with an optimized
refrigeration system, robust TK compressor, and other proven
components, which ensures
high cooling capacity, quick pull down, precise temperature
control, high reliability, easy use and low maintenance cost.
| Model RV-200 RV-300 RV-380 RV-580 |
| Temp. Range | -25℃~+30℃ |
| Refrigerant | R-404A |
| Charge (kg) | 1.10 (TK08 compressor) | 1.15 (TK15 compressor) | 1.2 | 1.8 | 2.5 |
| Compressor |
| Model | TK08 | TK15 | TK15 | TK16 | TK16 |
| Number of Cylinder | 6 | 6 | 6 | 6 | 6 |
| Displacement (cm3) | 82 | 146 | 146 | 163 | 163 |
| Cooling Capacity (W) A.T.P. U.N. Standard @30℃ (Ambient) |
Engine Power | 0℃ | 2,100 | 2,300 | 3,500 | 4,050 | 5,050 |
| -20℃ | 820 | 1,200 | 1,850 | 2,300 | 2,550 |
| Cooling Capacity (W) | A.R.I. U.S. Standard @38℃ (Ambient) |
Engine Power | 2℃ | 2,000 | 2,200 | 3,300 | 3,800 | 4,900 |
| -18℃ | 800 | 1,150 | 1,740 | 2,200 | 2,520 |
| Weight (kg, approximate) |
| Condenser | 24 (roof-mounted), 23 (nose-mounted) | 24 (roof-mounted), 23 (nose-mounted) | 30 | 35 |
| Evaporator | 9 | 15 | 18 | 30 |
| Compressor | 4.1 (TK08), 4.3 (TK15) | 4.3 | 4.7 | 4.7 |
RV-Series Key Features:
Larger condenser/evaporator coil for quicker heat exchange
Fast pre-cooling for higher efficiency
Greater cooling capacity for better load protection
Improved electrical system
Less refrigerant charge to care environment
Removable relay design for better maintenance

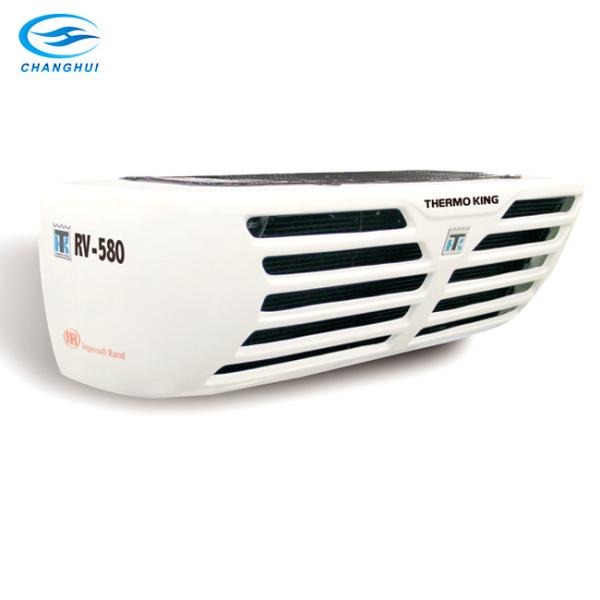

RV 580 Thermo King R404A 2.5kg Small Truck Refrigeration Units
