White Oil Free 4360W Thermo King Van Refrigeration Units
Quick Details
Condition:New
Applicable Industries:Garment Shops
After Warranty Service:Video technical support
Local Service Location:Malaysia
Showroom Location:Colombia
Type:COMPRESSOR
Place of Origin:Chongqing, China
Brand Name:THERMO KING
Certification:ce
After-sales Service Provided:Field installation, commissioning and
training
Warranty:3 years
Model No:SV400/SV600/SV700/SV800/SV1000
Product name:SV- series thermo king food truck refrigerator freezer
unit for sale
Refrigerant:R404a
Application:Cold Storage Room Freezer Room
Compressor:Oil-free
Structure:Truck Body, Front Mounted Installation
Key Words:thermo king truck refrigeration units
Compressor brand:THERMO KING
Color:White
Installation Kits::Rubber Hoses, Drain Water Hoses, Wiring Harness
Etc
White Oil Free 4360W Thermo King Van Refrigeration Units
product Introduction:
| Temp.Range | -25°C~+30°C |
| Refrigerant | R-404A |
| Charge (kg) | 1.8 | 2.5 | 2.5 | 2.6 | 2.6 |
| Compressor |
| Model | TK16 | TK16 | TK21 | TK21 | TK21 | TK31 |
| Number of Cylinder | 6 | 6 | 10 | 10 | 10 | 10 |
| Displacement (cm3) | 163 | 163 | 215 | 215 | 215 | 313 |
| Cooling Capacity (W) | | A.T.P. U.N. Standard @30°C (Ambient) | | |
| Engine power | 0°C | 4,360 | 5,060 | 5,500 | 6,700 | 7,500 | 8,500 |
| -20°C | 2,350 | 2,620 | 2,750 | 3,200 | 4,100 | 4,550 |
| Electric standby (3phase) | 0°C | 3,800 | 4,720 | 5,780 | 6,570 | 6,570 |
| -20°C | 1,860 | 2,460 | 2,900 | 3,400 | 3,400 |
| Electric standby (1phase) | 0°C | 3,300 | 3,960 | | | |
| -20°C | 1,500 | 1,860 | | | |
| Cooling capacity (W) | | A.R.I. U.S. Standard @38°C (Ambient) | | |
| Engine power | 2°C | 4,140 | 4,900 | 5,225 | 6,365 | 7,300 | 8,080 |
| -18°C | 2,250 | 2,570 | 2,670 | 3,040 | 4,000 | 4,320 |
| Electric standby (3phase) | 2°C | 3,500 | 4,350 | 5,490 | 6,200 | 6,200 |
| -18°C | 1,780 | 2,410 | 2,760 | 3,260 | 3,260 |
| Electric standby (1phase) | 2°C | 3,080 | 3,700 | | | |
| -18°C | 1,300 | 1,730 | | | |
| Evaporator blower performance |
| Flow rate (m3/h) (@0static pressure) | 1500 | 2500 | 2500 | 3000 | 3000 |
| Velocity ( m/s) | 3.3 | 3 | 3 | 3.5 | 3.5 |
| Electric standby |
Compressor | semi-hermetic (3phase:151CC;1phase:129CC) | semi-hermetic (3phase:151CC;1phase:129CC) | semi-hermetic (206CC) | semi-hermetic (206CC) | semi-hermetic (206CC) |
Voltage/Phase/ Freguency | 380V/3PH/50Hz | 380V/3PH/50Hz |
380V/3PH/50Hz 230V/3PH/60Hz |
380V/3PH/50Hz 230V/3PH/60Hz |
380V/3PH/50Hz 230V/3PH/60Hz |
| 230V/3PH/60Hz | 230V/3PH/60Hz |
| 220V/1PH/50Hz | 220V/1PH/50Hz |
| T |

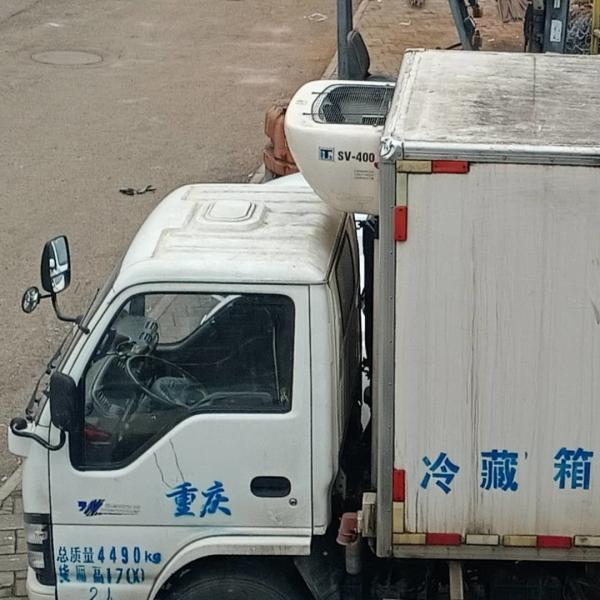

SV-Series:
SV, as the acronym of Supreme Vehicle-powered, is designed for
refrigerated transportmedium and heavy vehicles. This all new SV
platform is equipped with an optimized refcompressor, and many
other proven components, to ensure the state-of-the-art quality
superior cooling capacity protects perishable cargo, reducing the
concern of load loss.
SV-Series Product Model:
.SV-400
.SV-600
.SV-700
.SV-800 . SV-1000
SV-Series Dimension(mm):
SV-Series Key Features:
High performance to protect perishable products
High cooling capacity, quick pull down, accurate temperature
control
High reliability, low maintenance cost
New condenser platform
Light and compact, energy saving
Standard part, share same platform, decrease inventory cost
Improved appearance with patented design
(Patent number: 201230487134.2)
Higher efficiency & reliable electric standby
Improved evaporator
Long life integrated fans Optimized structure design and condensing
water drain Improved installation and service
Improved appearance with patented design (Patent number:
201230490703.9)
Thermo King robust compressor
High reliability, reduce failure rate Low life cycle cost
